Ekomat RTPO industrial boiler – thermal waste treatment

Industrial heating Boiler Ekomat RTPO

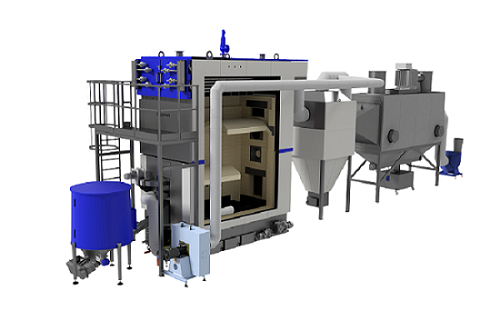

Ekomat RTPO Power Unit is designed for the thermal treatment of wood-based, "non-hazardous" waste, including post-production waste from furniture factories (MDF, HDF boards). The maximum moisture content of the fuel is 30% and size - up to 30 mm. Ceramic combustion chamber is equipped with retort furnace and hydraulically-driven sliding grate. The boiler unit has been extended with an additional afterburning chamber ensuring that the flue gas stays in the high temperature environment for 2 seconds after the last air supply. The standard equipment of any waste thermal treatment plant include:

  1. flue gas recirculation system, contributing to the emission reduction of nitrogen oxides (NOx)
  2. oil or gas burner
  3. multi-cyclone, performing preliminary dust extraction from flue gas
  4. Elenergy electrostatic filter ensuring high efficiency of dust extraction from flue gas
  5. connection point for the system of ammonia injection (SNCR) to the combustion chamber.

Ekomat RTPO is a boiler designed in accordance with the guidelines contained in the Regulation of the Minister of Development of 21 January 2016 on the requirements for conducting the thermal waste treatment process.

Boilers of Ekomat RTPO series are fully automated. Advanced controllers control all the unit’s operating parameters. In addition, we provide remote access to the control panel, via a mobile app, enabling, among others, online diagnostics.

Design of the Ekomat RTPO boiler – technical specifications and dimensions



Budowa



TECHNICAL DATA
EKOMAT RTPO 520 kW 1000 kW 1500 kW 2000 kW 3000 kW
Flanged connections DN/PN [mm/bar] 100/6 125/6 150/6 200/6 200/6
Flue gas flow rate* [m3/h] 1 570 3 140 4 700 6 270 9 400
Hydraulic resistance [kPa] 20 20 20 30 40
Water capacity [m3] 2.65 4.80 5.90 7.10 11.45
Flue diameter [mm] 300/150/80 350/180/100 400/200/113 450/225/130 500/250/180
Weight** [kg] 11 210 21 620 26 920 35 620 48 190
Efficiency [%] 85-90 85-90 85-90 85-90 85-90
Actual air demand [Nm3/s] 0.23 0.45 0.67 0.89 1.35
Fuel consumption*** [kg/s] 0.04 0.07 0.11 0.15 0.22
* Reference temp. 180°C
** Weight of the boiler block without water
*** Assuming fuel net calorific value LHV=15 MJ/kg (LHV = Lower Heating Value)

budowa inna perspektywa



OVERALL DIMENSIONS
EKOMAT RTPO A B C D E
520 kW 2070 1250 3540 6115 2830
1000 kW 2270 1450 4500 6885 3700
1500 kW 2470 1650 4850 7565 3990
2000 kW 2720 1900 5200 7760 4280
3000 kW 2720 1900 6250 9550 4860

kocioł Linia produkcyjna

Fuel feeding options

Ekomat RTPO



Ekomat RTPO with biomass storage and rolled tank

The rake, with a maximum length of 12 m, is driven by hydraulic cylinders. It is designed to transport fuel from the whole storage space to a screw conveyor. Then, fuel is transported to a rolled tank, wherefrom it is fed to a retort located in a combustion chamber.

Ekomat RTPO with rolled 1.8 m³ or 4.2 m³ tank

The tank is equipped with planetary gear driving profiled raking arms. Using a screw conveyor, fuel is fed to the retort located in the combustion chamber.

Ekomat RTPO



Ekomat RTPO



Ekomat RTPO with 5.5 m³ or 20 m³ container

Containers are equipped with hydraulically driven rakes. They transport fuel from the whole space of a tank to a screw conveyor. Using a screw conveyor, fuel is fed to the retort located in the combustion chamber.
